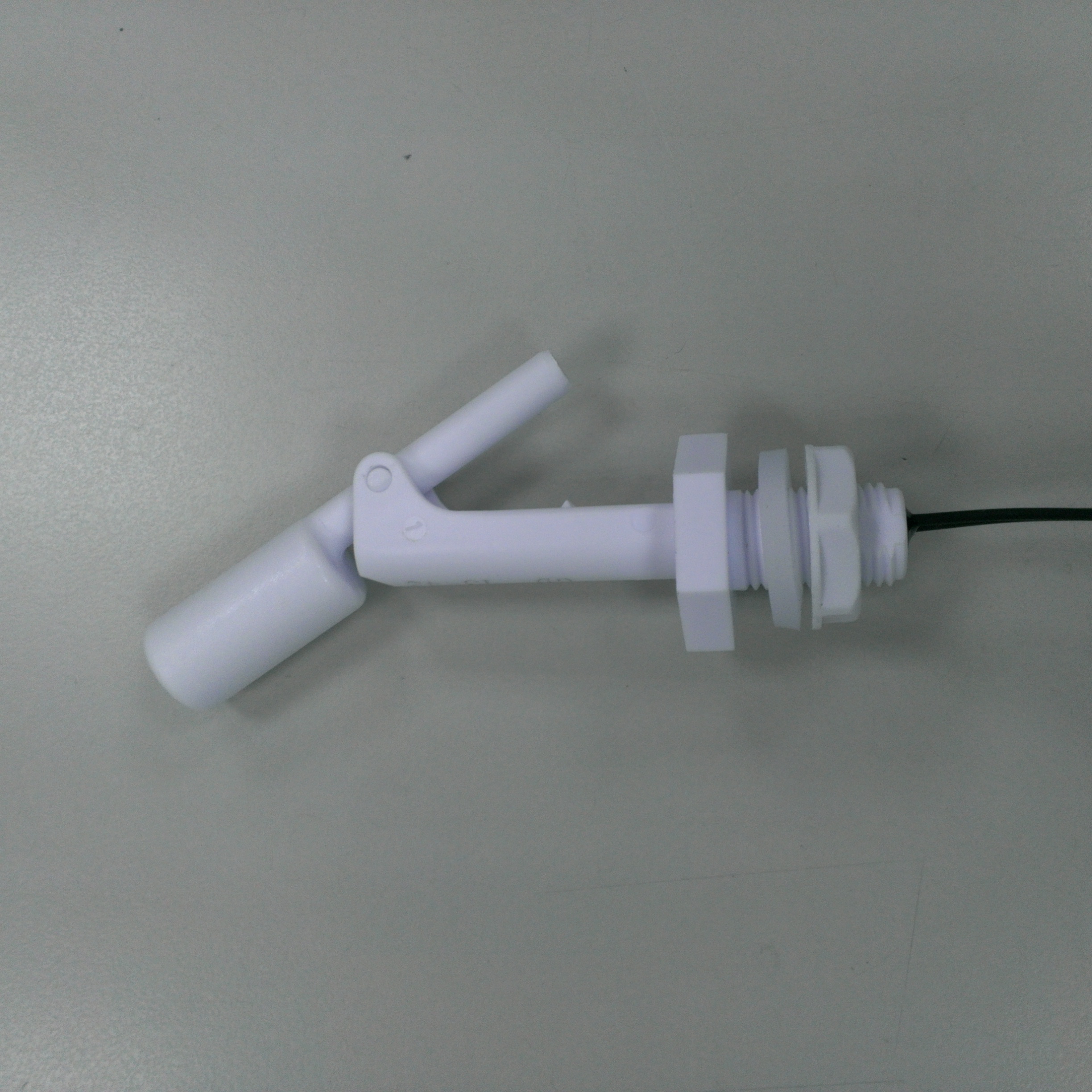

 GMF-VH-1A-M12/GMF-VH-2A-M12 |
 線上列印 |
| Type 類型 |
1A/2A
|
| Max. Contact Rating 最大功率 |
10W/50W
|
| Max. Switching Voltage 最大開關電壓 |
100VDC/200VDC/250VDC
|
| Max. Switching Current 最大開關電流 |
0.5A/1.5A/1A
|
| Min. Breakdown Voltage 最小崩潰電壓 |
250VDC/300VDC/750VDC
|
| Max. Carry Current 最大負載電流 |
......
|
| Max. Initial Contact Resistance 最大接觸電阻 |
100m Ω
|
| Temperature Rating 溫度範圍 |
-10 ~ +180 ℃
|
| Float Ball Material 浮球材質 |
PP/PA66/PVDF
|
| Float Body Material 本體材質 |
PP/PA66/PVDF
|
| Screw Nut Material 螺母材質 |
PP/ABS
|
| E-Ring Material 檔片材質 |
NONE
|
|
|
|
|
