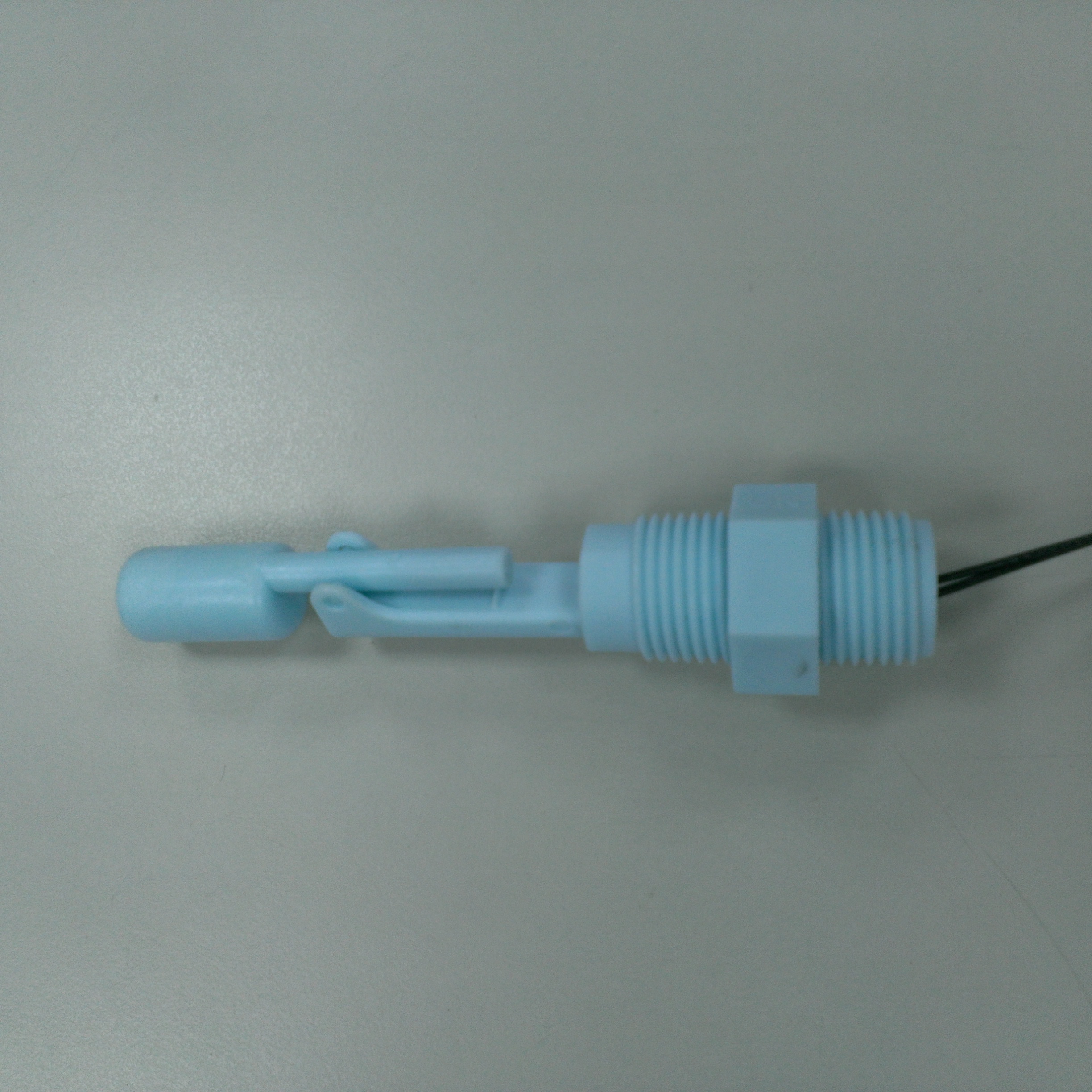

 GMF-VH-1A-NPT02/GMF-VH-2A-NPT02 |
 線上列印 |
| Type 類型 |
1A
|
2A
|
| Max. Contact Rating 最大功率 |
10W
|
50W
|
| Max. Switching Voltage 最大開關電壓 |
100VDC
|
200VDC/250VDC
|
| Max. Switching Current 最大開關電流 |
0.5A
|
1.5A/1A
|
| Min. Breakdown Voltage 最小崩潰電壓 |
220VDC
|
300VDC/750VDC
|
| Max. Carry Current 最大負載電流 |
1A
|
...
|
Max. Initial Contact Resistance 最大接觸電阻
Do not include the wire 不含線材 |
100m Ω
|
| Temperature Rating 溫度範圍 |
-10℃〜180℃
|
| Float Ball Material 浮球材質 |
PP /PA66/PVDF
|
| Float Body Material 本體材質 |
PP/PA66/PVDF
|
| Screw Nut Material 螺母材質 |
NONE
|
| E-Ring Material 檔片材質 |
NONE
|
|
|
|
|
